Shaped for your business
TECHNICAL INFORMATION
You know your business better than anyone. That’s why Nissan Primastar offers multiple configurations to meet your exact needs. As well as a range of exciting colours to let you put your mark on it.
UK specification may vary
NISSAN PRIMASTAR configurations
MODULARITY & DIMENSIONS
Whatever the cargo, whatever your needs, there's a Nissan Primastar configuration ready to handle it all.
Panel Van
Nissan Primastar space and manoeuvrability is practical for both city streets and motorways. Available in 2 heights and 2 sliding door options for easy access, either side
CHECK OUT ITS TECHNICAL INFORMATION
Panel van L1 H1 & L1 H2
DIMENSIONS
L1H1
L1H2
Length (mm)
5080
5080
Width / width including mirrors (mm)
1956/2283
1956/2283
Height (mm)
1971
2495
Wheelbase (mm)
3098
3098
Front overhang (mm)
1014
1014
Rear overhang (mm)
968
968
LOAD COMPARTMENT Length at floor level (mm)
2537
2537
Length at floor level with bulkhead with trapdoor (mm)
2950
2950
Maximum length at floor level (with uplifted seat) (mm)
3750
3750
Length at 1 meter from the floor (mm)
2250
2250
Maximum width (mm)
1662
1662
Width between wheel arches (mm)
1268
1268
Height (mm)
1387
1898
Loading sill (mm)
552
552
Load volume (m3)
5.8
7.75
L1H1
L1H2
SIDE SLIDING DOOR Width at 600mm from floor (mm)
907
907
Width at 100mm from floor (mm)
1030
1030
Height (mm)
1284
1284
REAR DOORS Height (mm)
1320
1820
Width at 70mm from floor (mm)
1391
1391
WEIGHTS (KG)
L1H1 1000 kg
L1H1 1200 kg
L1H2 1200 kg
Vehicle weight (unladen) (kg)
1,867
1,867
1,980
Payload with driver (kg)
933
1,143
920
GVW (kg)
2800
3010
2900
Payload is calculated as the difference between gross vehicle weight (GVW) and kerb weight.
Kerb weight includes fluids and fuel tank 90% full and excludes the driver (75kg).
Kerb weight is affected by factors such as body styles and options.
The weight figures in the table are related to a standard-specification vehicle according to type approval data. Figures may vary subject to grade.
Any additional options specified on the vehicle will increase its kerb weight and reduce its payload accordingly. All weight figures are subject to 5% manufacturing tolerances.
Panel van L2 H1 & L2 H2
DIMENSIONS
L2H1
L2H2
Length (mm)
5480
5480
Width / width including mirrors (mm)
1956/2283
1956/2283
Height (mm)
1971
2498
Wheelbase (mm)
3498
3498
Front overhang (mm)
1014
1014
Rear overhang (mm)
968
968
LOAD COMPARTMENT Length at floor level (mm)
2937
2937
Length at floor level with bulkhead with trapdoor (mm)
3350
3350
Maximum length at floor level (with uplifted seat) (mm)
4150
4150
Length at 1 meter from the floor (mm)
2650
2650
Maximum width (mm)
1662
1662
Width between wheel arches (mm)
1268
1268
Height (mm)
1387
1898
Loading sill (mm)
552
552
Load volume (m3)
6.7
8.9
L2H1
L2H2
SIDE SLIDING DOOR Width at 600mm from floor (mm)
907
907
Width at 100mm from floor (mm)
1030
1030
Height (mm)
1284
1284
REAR DOORS Height (mm)
1320
1820
Width at 70mm from floor (mm)
1391
1391
WEIGHTS (KG)
L2H1 1200 kg
L2H2 1200 kg
Vehicle weight (unladen) (kg)
1,904
2,003
Payload with driver (kg)
1,166
1,007
GVW (kg)
3,070
3010
Payload is calculated as the difference between gross vehicle weight (GVW) and kerb weight.
Kerb weight includes fluids and fuel tank 90% full and excludes the driver (75kg).
Kerb weight is affected by factors such as body styles and options.
The weight figures in the table are related to a standard-specification vehicle according to type approval data. Figures may vary subject to grade.
Any additional options specified on the vehicle will increase its kerb weight and reduce its payload accordingly. All weight figures are subject to 5% manufacturing tolerances.

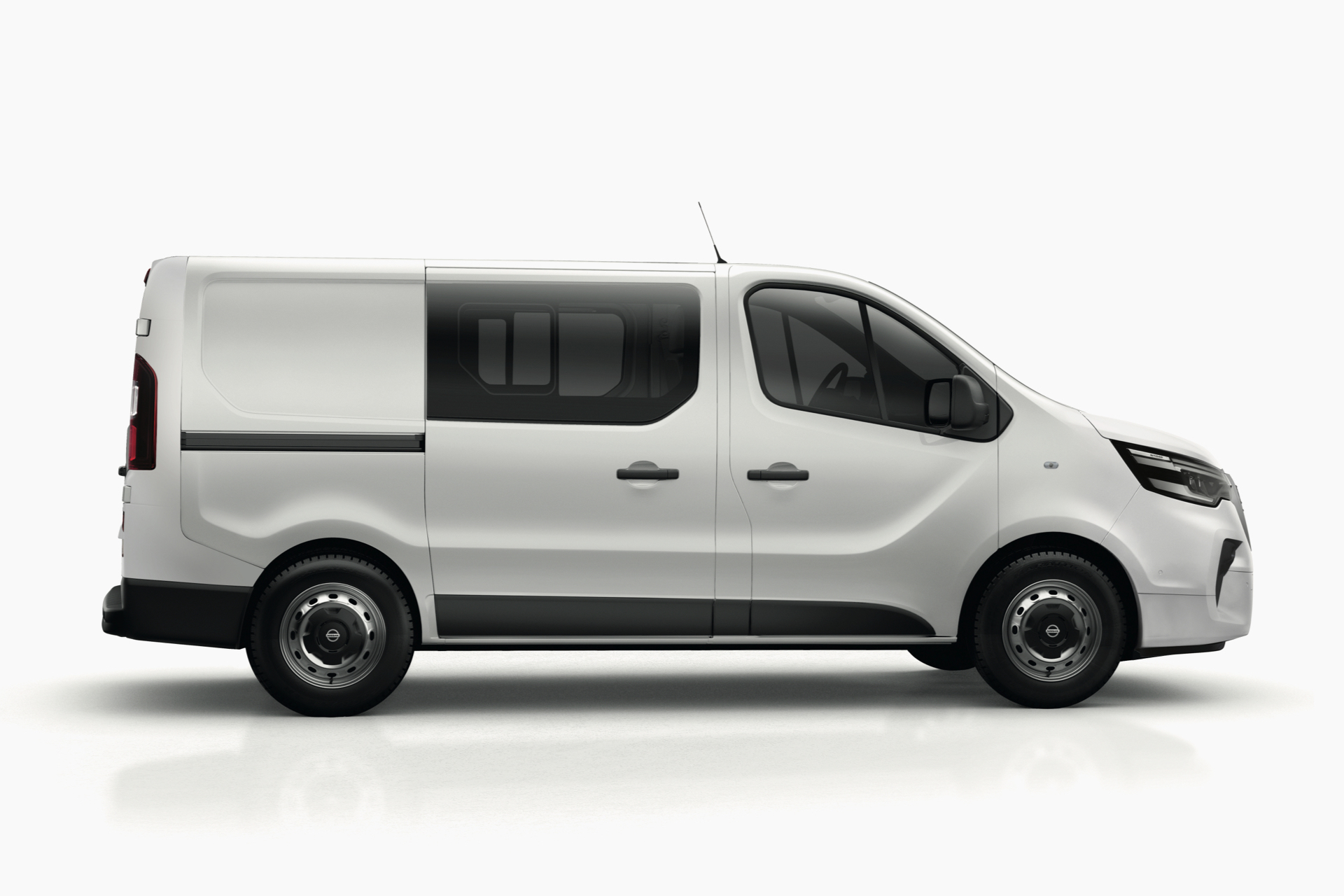

Crew Van
The Nissan Primastar Crew Van is the flexible working solution. Your workmates have easy access through twin sliding doors, with room to travel to the job and back in comfort. Available in two lengths, there’s plenty of space for your crew and up to 4m3.
CHECK OUT ITS TECHNICAL INFORMATION
CREW van L1 H1 & L2 H1
DIMENSIONS
L1H1
L2H1
Length (mm)
5080
5480
Width / width including mirrors (mm)
1956/2283
Height (mm)
1971
1971
Wheelbase (mm)
3098
3498
Front overhang (mm)
1014
1014
Rear overhang (mm)
968
968
LOAD COMPARTMENT Length at floor level (min/max) (mm)
1914/2023
2314/2423
Length at 1 meter from the floor (mm)
1340
1740
Maximum width (mm)
1662
1662
Width between wheel arches (mm)
1268
1268
Height (mm)
1387
1387
Loading sill (mm)
552
552
Load volume (m3)
3,2
4
L1H1
L2H1
SIDE SLIDING DOOR Width at 600mm from floor (mm)
907
907
Width at 100mm from floor (mm)
1030
1030
Height (mm)
1284
1284
REAR DOORS Height (mm)
1320
1320
Width at 70mm from floor (mm)
1391
1391
WEIGHTS (KG)
L1H1 1200 kg
L2H1 1200 kg
Vehicle weigth (unladen) (kg)
1,975
2,014
Payload with driver (kg)
1,035
1,056
GVW (kg)
3,010
3,070
Payload is calculated as the difference between gross vehicle weight (GVW) and kerb weight.
Kerb weight includes fluids and fuel tank 90% full and excludes the driver (75kg).
Kerb weight is affected by factors such as body styles and options.
The weight figures in the table are related to a standard-specification vehicle according to type approval data. Figures may vary subject to grade.
Any additional options specified on the vehicle will increase its kerb weight and reduce its payload accordingly. All weight figures are subject to 5% manufacturing tolerances.
Images and descriptions shown are for guidance purposes. In some instances photos are of non-UK specification vehicles and do not represent a specific model, grade or offer. Features available depending on version, as standard or only as option (at an extra charge).
